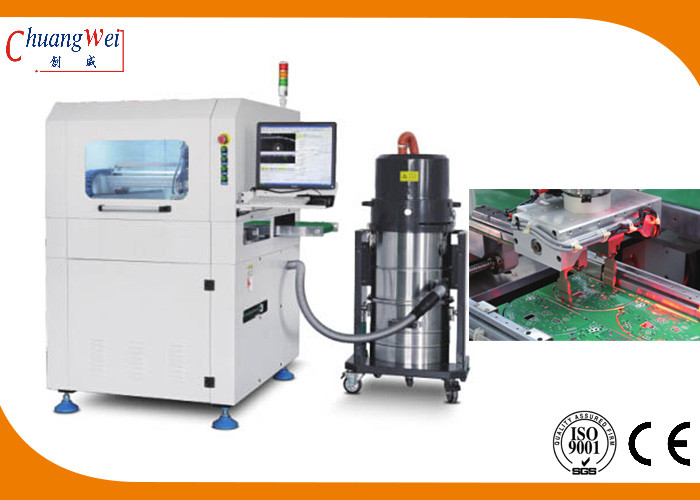

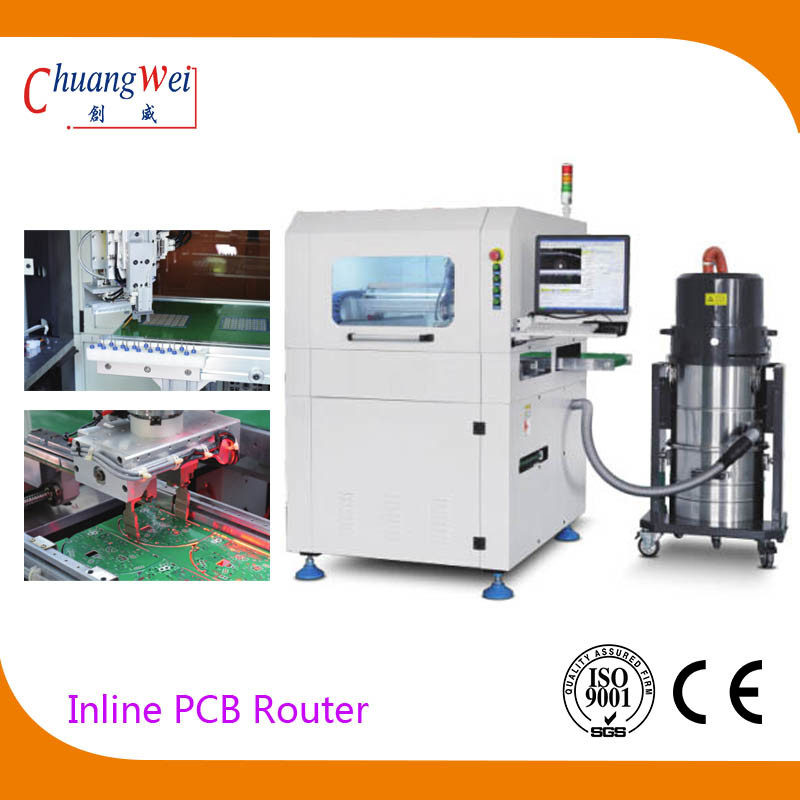

0.5mm Cutting Precision Automatic Tool Change PCB Depaneling PCB Router
An on-line PCB which is specially used to cut PCBA components(panel) into separate parts, featuring rail-mounted structure without jig cutting. It can be put into production immediately. Featuring ESD static monitoring, cutting stress feedback, and automatic tool changing, it can reach a top speed of 60000 rotates. The control system developed on the basis of our RM system can ensure customer’s rapid and accurate programming.
Inline PCB Router CW-F03.pdf Specification:
|
Model |
CW-F03 |
|
Machine Size |
1000*1200*1533mm |
|
Weight |
Approx 1900kgs |
|
Max PCB Size |
350*350mm |
|
PCB Thickness |
0.4-6mm |
|
Transmission height |
900±50mm |
|
Transmission direction |
Left -> Right |
|
Transmission speed |
1500mm/s(max)/adjustable |
|
Feeding plate type |
Section-type transportation guide rail |
|
Rail width adjustment |
Automatic |
|
Communication signal of upper and lower computers |
SMEMA |
|
PCB Positioning |
Upper and lower guide rail clamping |
|
Picking system |
360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most |
|
Cutting spindl/speed |
Germany KAVO, 60,000rpm/min |
|
Cooling type |
Air compression |
|
ESD monitoring |
Yes |
|
Automatic tool change |
Yes |
|
Cutting stress feedback |
Yes |
|
Break blade check |
Yes |
|
Cutting speed |
1-200mm/s |
|
Cutting accuracy |
±0.5mm |
|
Repeat positioning accuracy |
±0.01mm |
|
Coordinate moving speed |
1000mm/s |
|
Out plate type |
ESD belt transportation/batch panel forwarding unit |
|
Waste collection type |
Out off the track |
|
Procedure programming |
GERBER drawing import/Editing program through visual system |
|
Air supply |
5-8kg/cm2 |
|
Power supply |
AC380V±5%, 50/60Hz, 3KW |
Advantages Super Vision System
A precise machine visual system which consists of German imagining industrial camera, Moritex Lens and measurement-level light source; it
supports all functions of machine calibration, compensation and positioning, featuring highstablility and anti-disturbance capacity.
High reliability PCB gripper system
A perfect solution without jig cutting; A PCB clamping size scope of 2mm, the pick up device can realize repid loading/uploading, featuring high stability and low cost.
Automatic tool changer
The standard tool changer supports three kinds of 3.175mm tools, each of which has a top loading Capacity of 10 ones. It is combined with precise clamping system and lifting system; three axes -X1,Y1 and Z1 of the cutting mechanism can realize tool changing.
High reliability cutting system
Germany KAVO high-speed principal axis with a top speed of 60000 rotates, featuring ESD static voltage monitoring and the functions of cutting stress feedback and automatic tool changing.
